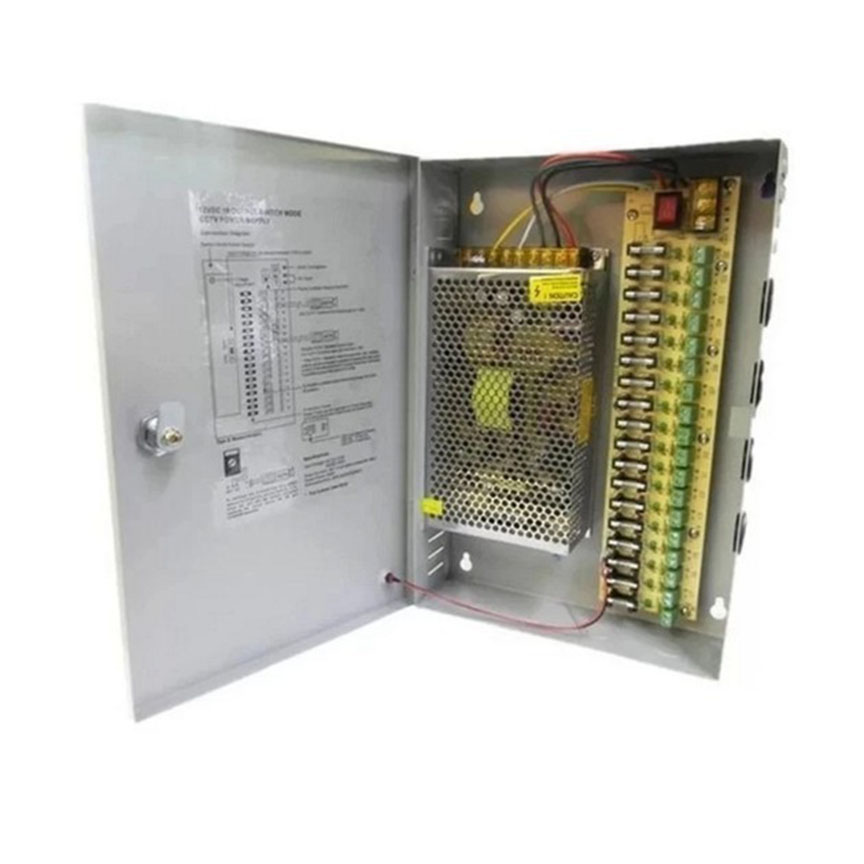

30A 12VDC 18 Output Switch Mode CCTV Power Supply

12VDC 18 Output Switch Mode CCTV Power Supply.
POWER SUPPLY W/ PANEL BOX 12V 30A

Description

PRODUCT FEATURES

  • 12VDC 18 Output Switch Mode CCTV Power Supply.
    DC 12V, 18 Output Switch Mode Security CCTV Power Supply, AC100-120V lnput Voltage, 18 X 1.5 A Fused Outlets (30A Max) Output Current, 360W Output Power, for CCTV Surveillance Video Camera Systems.12VDC 18 Output Switch Mode CCTV Power Supply Features:
  • If the CCTV cameras rated at more than 1.5A multiple outputs can be connected in parallel to increase the total output current. In the example shown 3 outputs have been connected in parallel to give total output of 4.5Amp.·
  • Input Voltage can be selected between 110V and 220V.·
  • Fuses can be upgraded 2 Amp if required, providing total power output does not exceed 27A.12VDC 18 Output Switch Mode CCTV Power Supply Specification”·
  •  lnput Voltage:AC100~120V AC220~240V·
  • Output Current: 18×1.5A fused outlets(30A Max)
  •  Output power: 360W·
  • Dimensions(mm):   320(L) x230(W)x65(H)12VDC 18 Output Switch Mode CCTV Power Supply Package Contains:·
  • 1 x 12VDC 18 Output Switch Mode CCTV Power Supply
